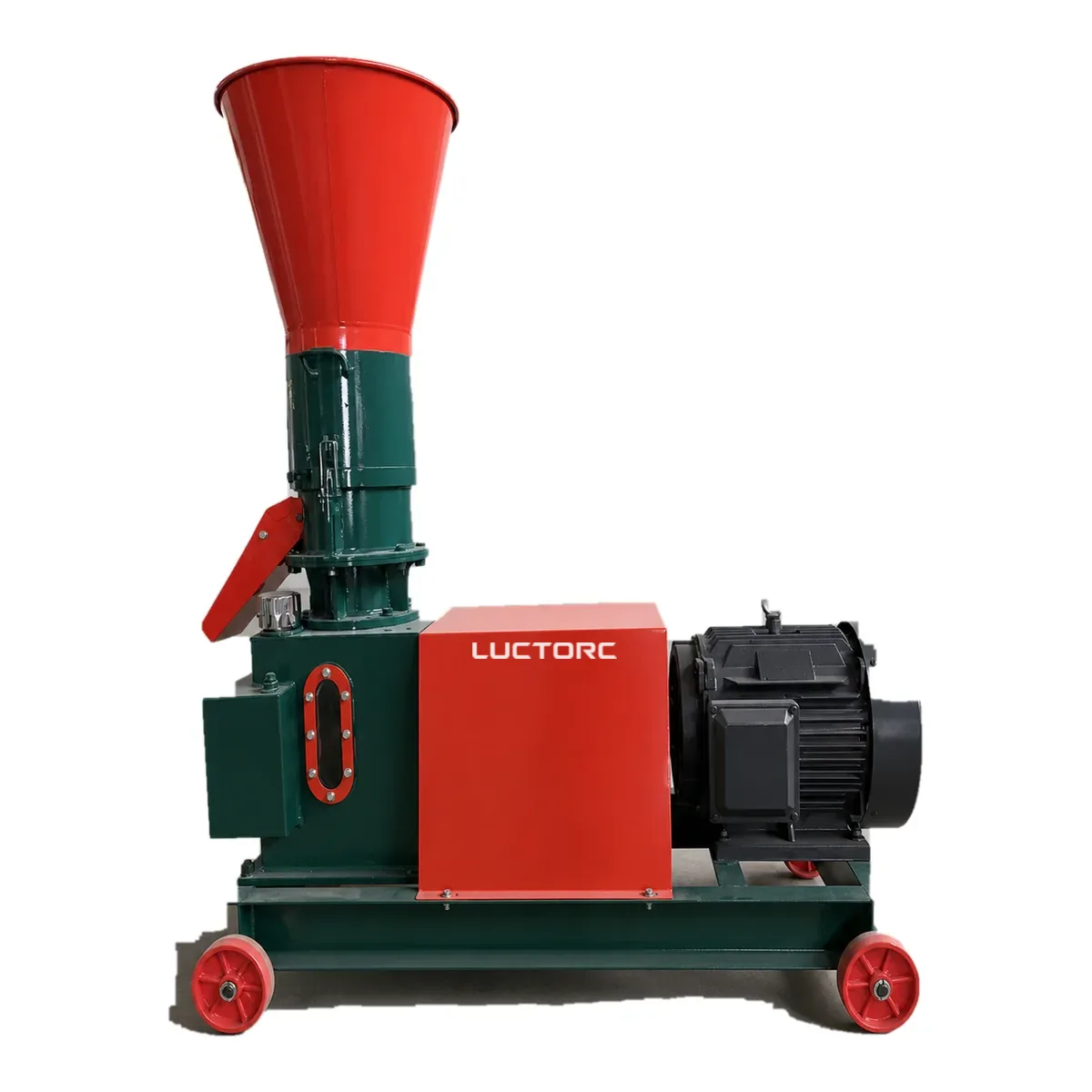

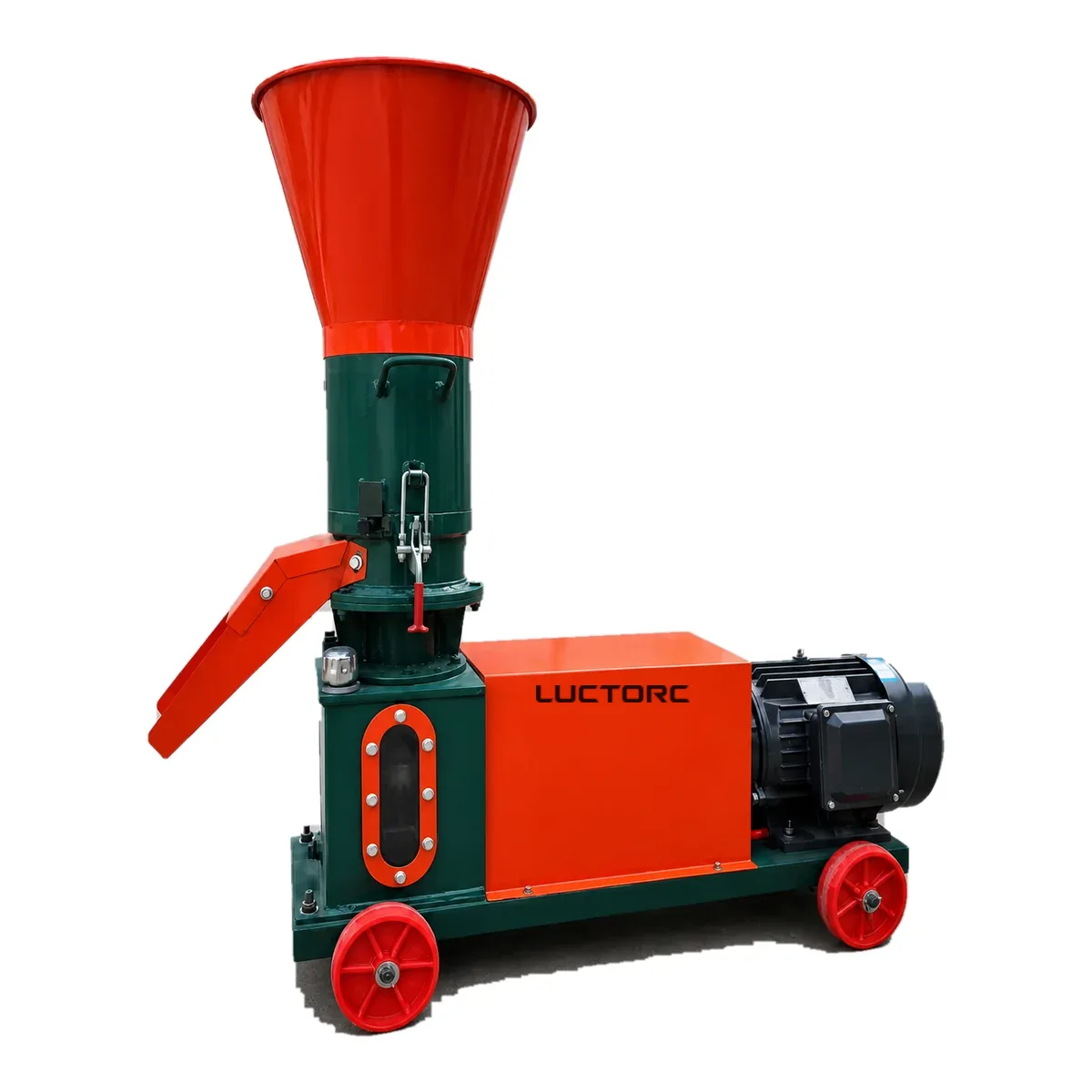

Feed Pellet Machine — Press-Roller Series

Nine models on one inclined press-roller design, from a 4 kW farm machine at 100 kg/h to a 75 kW mill at 3,000 kg/h.

9 models · 100–3,000 kg/h

Production: 100–3,000 kg/h
Power: 4–75 kW
Models: 200 – 500

Request a quote WhatsApp

Quoted on inquiry, with the full specification in writing.
12-month warranty covering manufacturing defects, stated on the quotation.
Export packing and container loading arranged to your port.
Wear parts — film, blades, belts, rollers and dies — supplied for the life of the machine.

Ask for the Press-Roller Series technical sheet and working video

Technical data

Full specification

Every figure the factory publishes for this model.

Press-Roller Series — published figures

Specifications for the Feed Pellet Machine — Press-Roller Series
Models	200 – 500
Production	100–3,000 kg/h
Power	4–75 kW
Motor speed	970–1,450 rpm

Confirmed at quotation

Details confirmed on the quotation
Voltage and frequency	Set to your market at order
Packing	Export crate dimensions and gross weight
Container loading	Machines per 20 ft / 40 ft container
Lead time	From deposit to shipment
Spare and wear parts	First set quoted with the machine

No price is published on this site. The machine, its die or wrapping specification, the parts included and the shipping arrangement decide the figure, so every model is quoted in writing on inquiry.

Model table

Nine models, 100 to 3,000 kg/h

One inclined press-roller design across the series. Die specification is quoted with the machine once we know the material and the pellet diameter.

LUCTORC feed pellet machine press-roller series
Model	Production	Power	Weight	Size	Motor speed
Model 200	100–150 kg/h	4 kW	110 kg	1000 × 340 × 970 mm	4-pole, 1450 rpm
Model 200	150–250 kg/h	7.5 kW	138 kg	1150 × 420 × 1000 mm	4-pole, 1450 rpm
Model 210	300–500 kg/h	11 kW	250 kg	1430 × 610 × 1280 mm	6-pole, 970 rpm
Model 260	500–700 kg/h	15 kW	340 kg	1530 × 670 × 1440 mm	6-pole, 970 rpm
Model 280	500–700 kg/h	15 kW	360 kg	1530 × 670 × 1440 mm	6-pole, 970 rpm
Model 300	800–1200 kg/h	22 kW	470 kg	1800 × 700 × 1600 mm	6-pole, 970 rpm
Model 350	800–1200 kg/h	22 kW	580 kg	1830 × 730 × 1610 mm	6-pole, 970 rpm
Model 400	1500–2000 kg/h	45 kW	950 kg	2200 × 860 × 1870 mm	6-pole, 970 rpm
Model 500	2000–3000 kg/h	75 kW	1470 kg	1960 × 770 × 1400 mm	6-pole, 970 rpm

Swipe the table sideways to compare every column.

Inclined press rollers

Improved sealing and durability compared with flat rollers.

Even mould wear

Balanced pressure extends roller and mould service life.

Thickened base

Enlarged reduction gearbox for smoother, steadier operation.

High-pressure work

Suited to livestock feed and other compressible materials.

Ordering

What a quotation for the Press-Roller Series covers

Machinery bought across a border is bought on the paperwork. All three are stated in writing before you commit to anything.

Specification

Installed power and voltage, pellet diameter and die specification, output, machine weight and overall dimensions. Anything shown here as on request is confirmed at this point, not left open.

Packing and shipping

Packing method, crate dimensions and gross weight, machines per container, port of loading, and the lead time from deposit to shipment.

Terms

Price validity, payment terms, the warranty period and what it covers, and the wear parts we recommend ordering with the machine.

Working videos, technical sheets and packing photographs for the Press-Roller Series are sent with the quotation.
